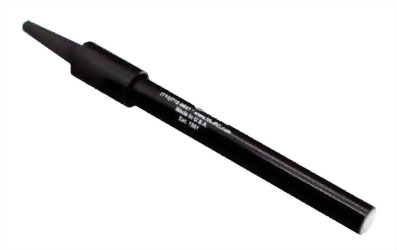

Gas Sensing Electrodes
|
Electrode |
氨-Ammonia(NH3) |
二氧化碳-Carbon Dioxide(CO2) |
亞硝酸鹽-Nitrogen Oxide(NOx) |
|
Mono |
NH31501 |
CO21501 |
NOX1501 |
|
Housing |
EPOXY |
EPOXY |
EPOXY |
|
Slope |
56+/-3 |
56+/-3 |
56+/-3 |
|
Reproducibility |
±2% |
±2% |
±2% |
|
Temp Range |
0 to 50ºC |
0 to 50ºC |
0 to 50ºC |
|
Pressure Range |
0~10psi |
0~10psi |
0~10psi |
|
Response Time |
30seconds |
30seconds |
30seconds |
|
Concentration Range |
0.01~17000 |
4.4~440 |
0.2~220 |
|
pH Range |
above 11 |
4.8 to 5.2 |
1.1 to 1.7 |
|
Interferences |
Volatile amines |
Volatile weak acids |
SO2，HF，acetic acid |
